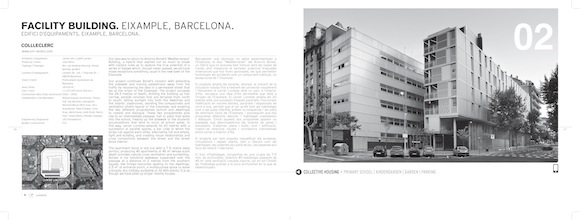

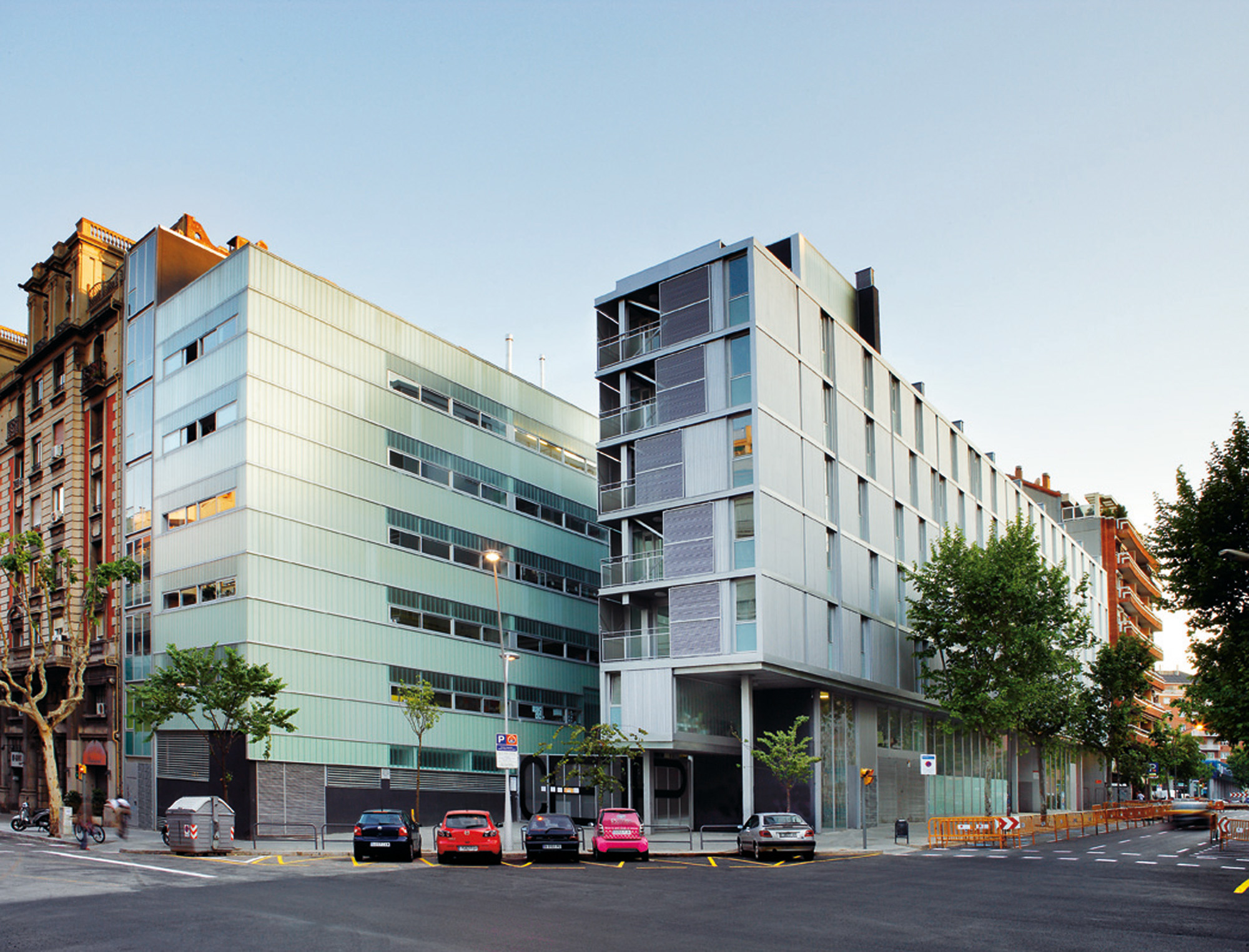

FACILITY BUILDING. EIXAMPLE, BARCELONA.

COLLLECLERC

Architects:
Jaime Coll y Judith Leclerc
Photos by:
José Hevia
Typology:
Mix-use building (housing, school, parking, garden)
Location:
Londres 56–64, Barcelona
Date:
2006

Our idea was to return to Antonio Bonet’s ‘Mediterranean’ Building, a hybrid that aspired not so much to break with Cerda’s rules as to explore the true potential of a series of bylaws which, though never passed, would have made exceptions something usual in the new town of the Eixample.

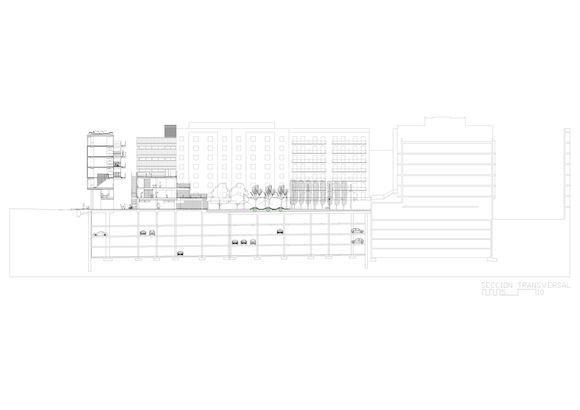

Our project continues Bonet’s concern with extending the sidewalk and moving pedestrians away from the traffic by recovering the idea of a permeable street that lay at the origin of the Eixample. The project occupies the 28.5 metres of depth, dividing the building up into narrow, parallel volumes that are terraced from north to south, letting sunlight into both the dwellings and the infants’ classrooms, avoiding the compactness and ventilation shafts typical of the Eixample, and enabling the two different programmes (school and dwellings) to coexist and dialogue. These two programmes give rise to an intermediate passage, hall or patio that leads into the school, freeing up the sidewalk of the students accumulations that tend to occur at school gates. In this way, carrer Londres extends its 20 metres with a succession of parallel spaces, a bar code in which the strips rub against each other, alternating full and empty, light and building, and creating visual relationships and cross connections between the street and the street block interior.

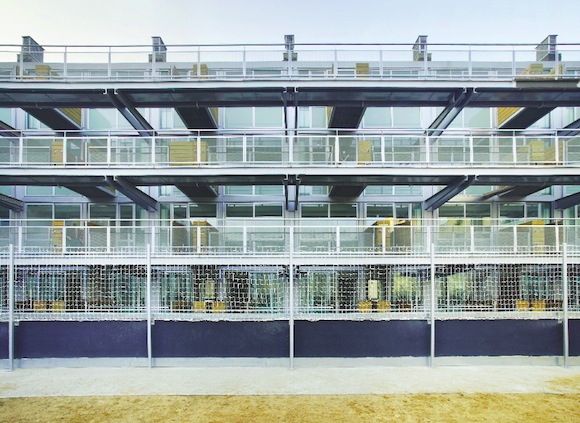

The apartment block is laid out with a 7.5-metre deep portico, producing 45 apartments of 45 m2 whose scant depth provides natural cross ventilation and sunlighting. Access is via industrial walkways suspended over the passage at a distance of 2 metres from the southern façade, like bridge-balconies leading to the dwellings; 2.5 m2 of entrance porch, a multipurpose space to leave a bicycle, dry clothes, sunbathe or fill with plants. It is as though we have piled up single-familly houses.
